Channel MS 41/21/2,0 3M

Versatile mounting rail for technical building equipment and industrial plant engineering – ideal for crossbars, wall brackets and support frames.
Maximum flexibility during assembly thanks to internal teeth and compatibility with siConnect system components such as slide element 41, TCS 1, hook head screw HZ and all CC components.
Available in various designs, e.g. as a trapezoidal rail for higher load requirements – perfect for customised mounting solutions.

Description

V_Z,perm.

4,00 kN

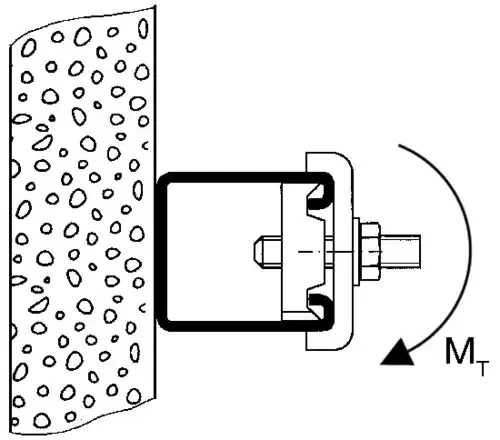

M_X,perm.

0,04 kNm

Torsional constant It	0,01 cm^4
Cross-sectional Area A	1,60 cm²

Note: All values refer to slotted channels.

Permissible stress σ{perm.}	185,00 N/mm²
Permissible yield strength f_y,perm.	285,00 N/mm²

For further technical data, please refer to the pages in the download area.

This product has been awarded the RAL quality mark “Pipe Supports” and is subject to continuous external monitoring according to RAL GZ-655.

The types 41/41/1.5 do not have the RAL quality label.
