Description

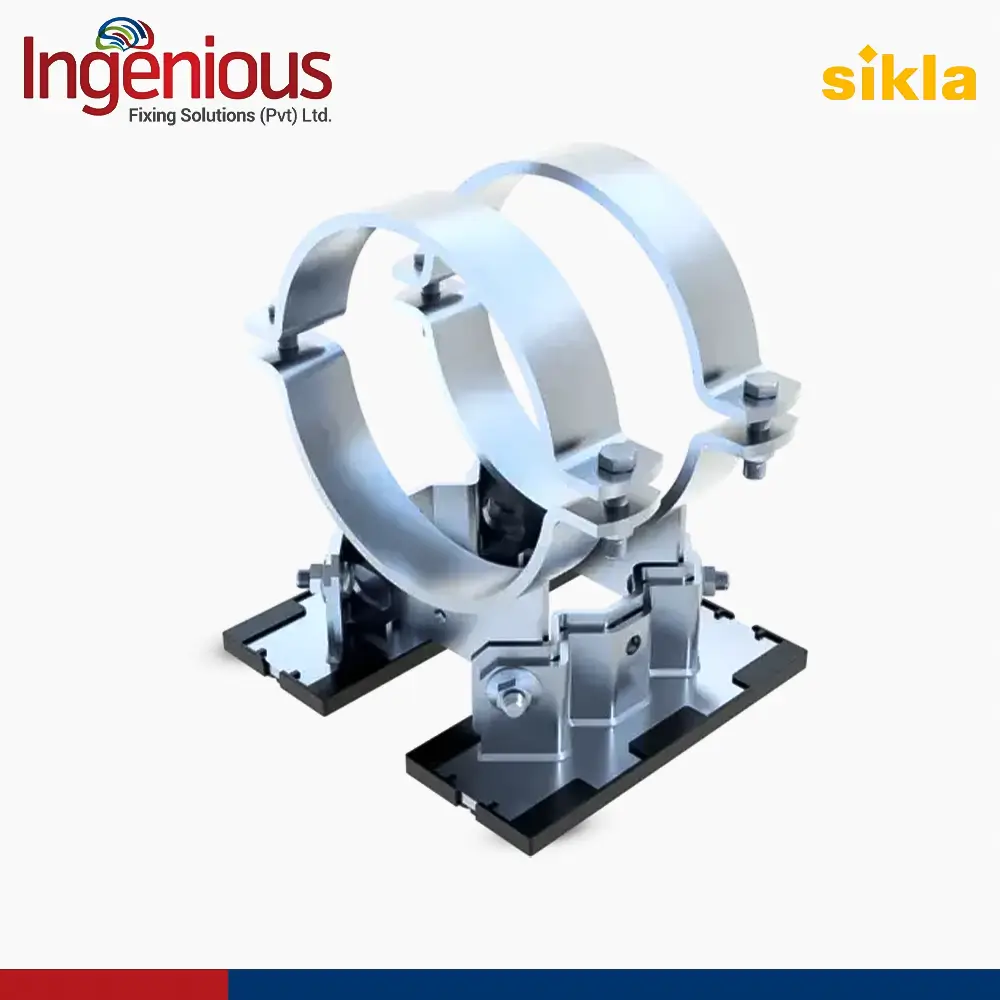

Height-adjustable, double-clamp pipe shoe with two bars and a delivery height of 90 mm. Height adjustment in 2.5 mm increments. Particularly suitable for sliding pipe supports on suitable surfaces. A minimum flange width of 80 mm is recommended when mounting on steel beams. Guide or fixed points can also be created by combining with other Sikla components.
Technical specifications
| Max. temperature | 300 °C |
| Min. temperature | -20 °C |
| Max. temperature sliding element | 130 °C |
| Min. temperature sliding element | -20 °C |
| Pipe shoe static coefficient of friction u (without sliding plate) – siFramo and siMotec | 0,3 |
| Pipe shoe static coefficient of friction u (with sliding plate) – siFramo and siMotec | 0,2 |
| Primary element material | steel |
| Sliding element material | PA 6.0 |
| Connecting element material | steel |
| Surface finish | HCP |
| Corrosion protection class | C4 |
Also available with Dual Shield for high corrosion protection within C5H environments. Minimum quantities must be observed for pipe shoes outside the DN range. In addition, delivery times apply for these items on request.
