Channel MS 27/15/1,25 3M

Channel MS 27/15/1,25 3M

Channel MS 27/15/1,25 3M - Image 2

Channel MS 27/15/1,25 3M - Image 3

Channel MS 27/15/1,25 3M

Element for easy and efficient pre-assembly of crossbars, wall brackets and support structures on site or in workshops
Compatible with all products in the Pressix CC 27 range for Channel MS 27

Download Data Sheet

Description
Reviews

Description

Technical Data

ms_27_M.eps

B	27 mm
b	8,5 mm
C	50 mm
d	10,5 mm
H	15 mm
l_z	10 mm
t	1,25 mm

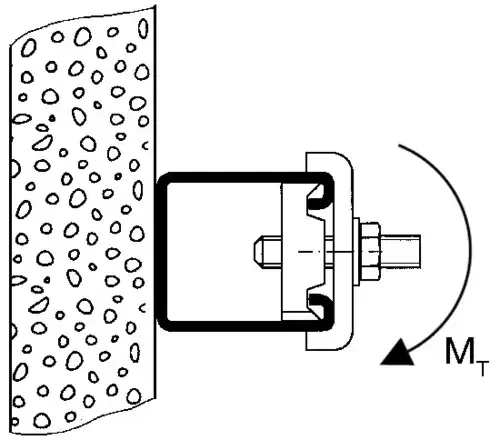

Load range

M_X,perm.

0,01 kNm

Elastic modulus Wy	0,25 cm³
Elastic modulus Wz	0,64 cm³
Second moment of area Iy	0,20 cm^4
Second Moment of Area Iz	0,86 cm^4
Radius of gyration iy	0,54 cm
Radius of gyration iz	1,13 cm

Cross-sectional Area A

0,67 cm²

Note: All values refer to slotted channels.

Technical specifications

Permissible stress σ{perm.}	188,00 N/mm²
Permissible yield strength f_y,perm.	290,00 N/mm²

Primary element material	steel
Surface finish	pre-galavanised
Corrosion protection class	C2

Certification

This product has been awarded the RAL quality mark “Pipe Supports” and is subject to continuous external monitoring according to RAL GZ-655.
