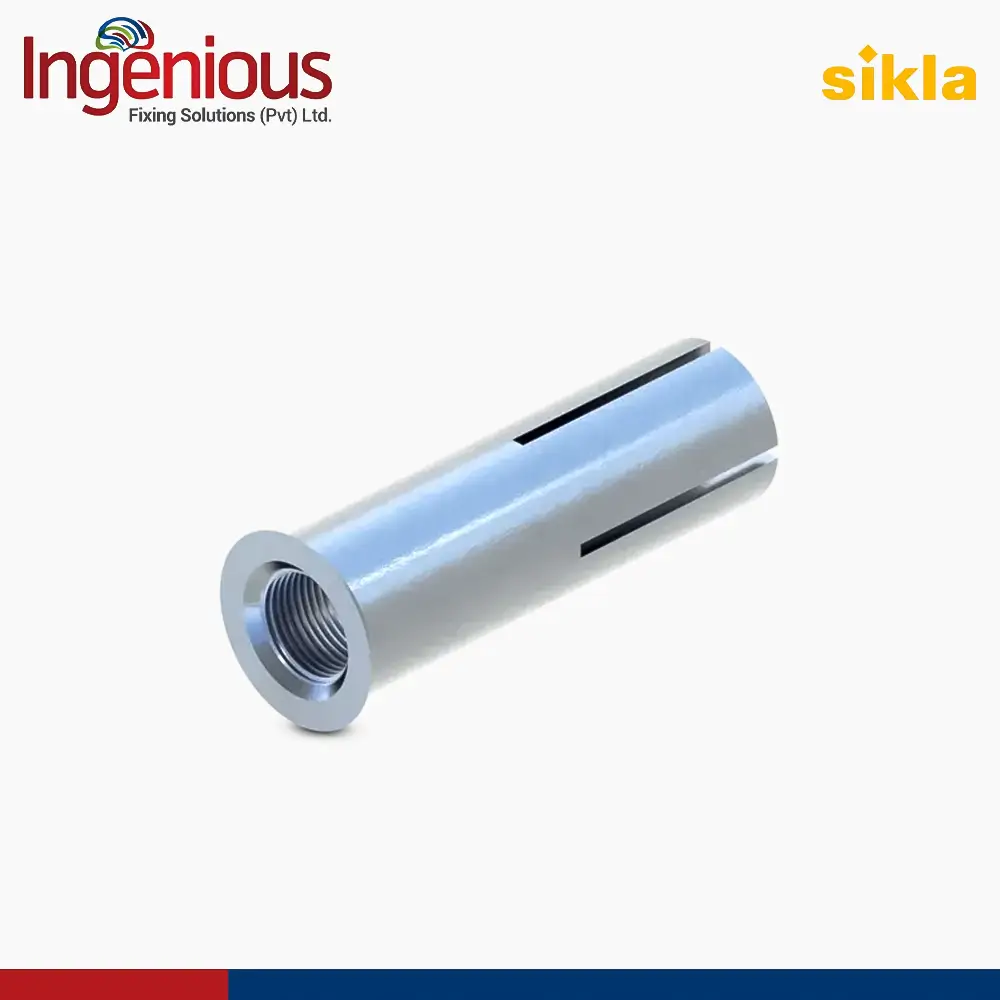

Drop-in Anchor AN ES

Drop-in Anchor AN ES

  • Hammerset Anchor for multiple attachment in cracked and single attachment in non-cracked concrete
  • Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements

Download Data Sheet

Description

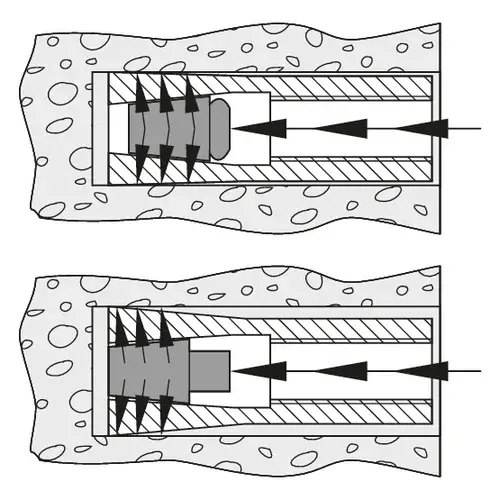

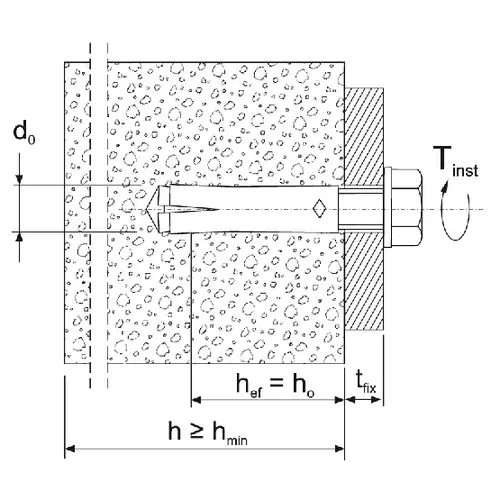

Drop-In Anchor for single fixing in non-cracked concrete and multiple fixing in cracked concrete. Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements. The anchor must only be used for dry interiors. For damp locations and outdoor constructions the stainless steel version is required. No special drill required. Setting tool for distance-controlled forced expansion- Suitable for push-through mounting.

Certification

For the multiple use for non-structural applicatons Sikla approval ETA-10/0258 (M8 – M12), for installation in non-cracked concrete Sikla approval ETA-10/0257, fire protection testing, VdS-conform, FM-Approval ≥ M10.

Technical specifications

Primary element material steel
Surface finish electro galvanized (Fe//Zn)
Corrosion protection class C2

For load values, see additional documents.

Type M12x25: Delivery date on request – goods are procured on an order-by-order basis.
