Description

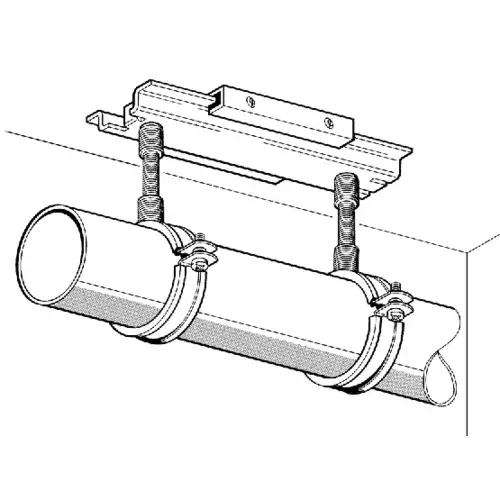

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1′. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced PA slide rails.
Certification
Technical specifications
| Permissible long-term temperature | 130 °C |
| Sliding friction μ | 0,14 |
| Static coefficient of friction μ0 | 0,18 |
| Primary element material | steel |
| Sliding element material | PA GF |
| Surface finish | electro galvanized (Fe//Zn) |
| Corrosion protection class | C2 |
Load range
|
Type |
-VZ,perm. |
VZ,perm. |

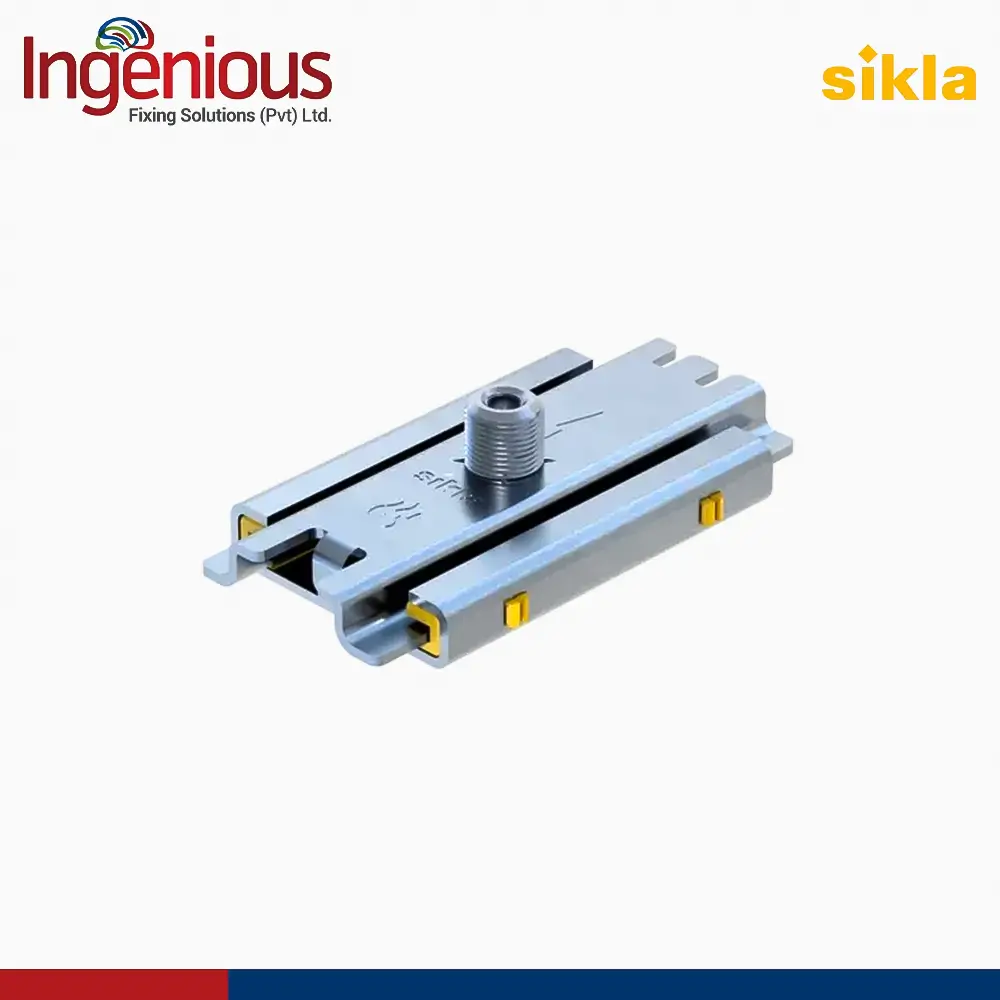

| GS 2G | 0,60 kN | 1,20 kN |

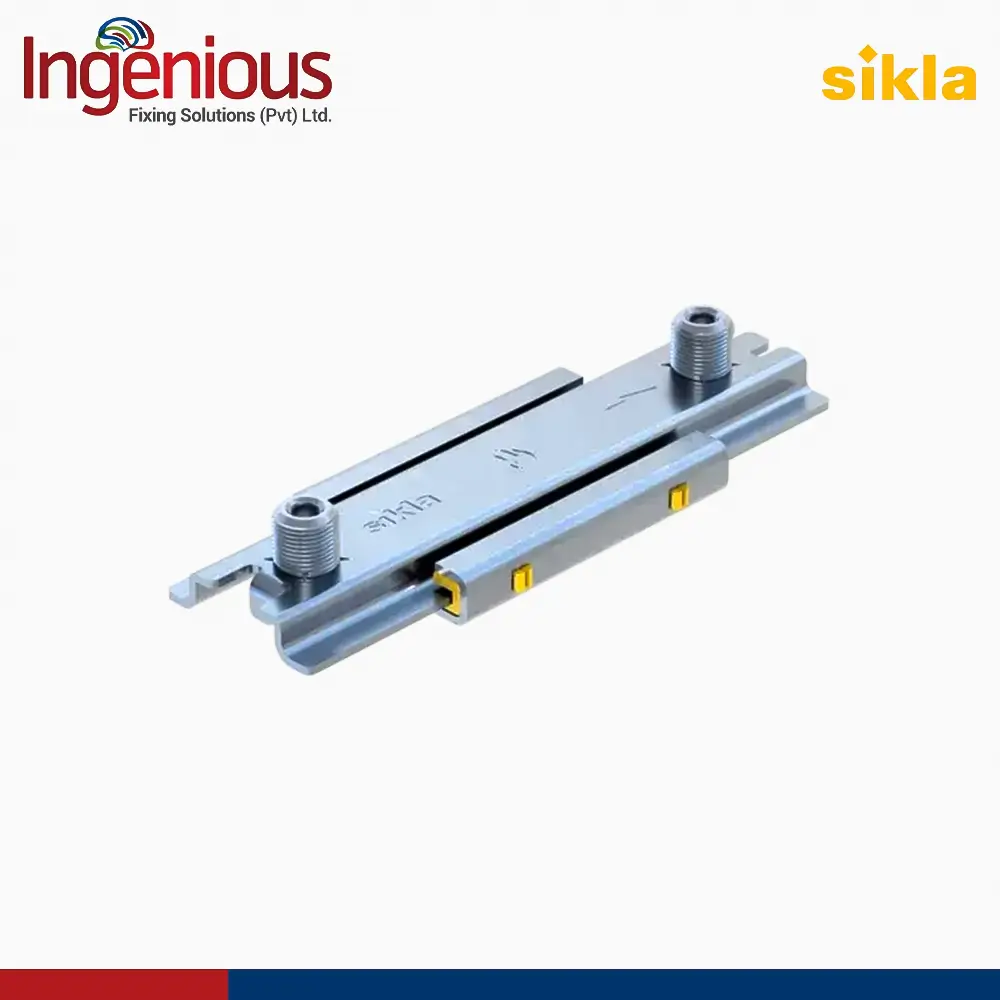

| GS 2G2 | 0,60 kN | 1,20 kN |
The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.
Fire resistance
|
Type |
Fire Resistance 30 min |
Fire Resistance 60 min |
Fire Resistance 90 min |
Fire Resistance 120 min |
| GS 2G | 0,6 kN | 0,43 kN | 0,28 kN | 0,2 kN |
| GS 2G2 | 0,6 kN | 0,43 kN | 0,28 kN | 0,2 kN |
