Description

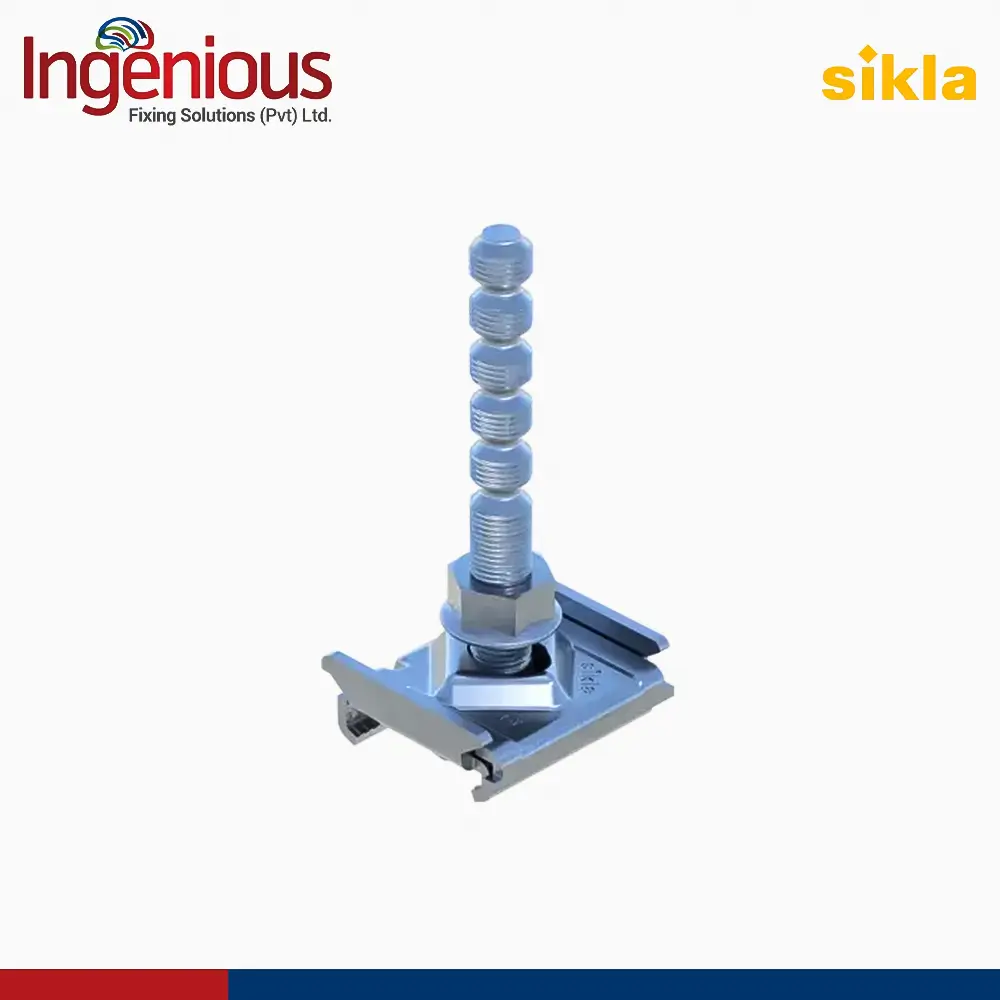

Quick assembly system for attaching pipe clamps and other components to the siMetrix Profile PRO 46. It is self-retaining thanks to the shape, but can still be easily moved by hand. Easy height adjustment due to 10 mm spaced grooves which allow easy shortening with the Rod Cutter PBC without sawing or re-cutting threads.
Certification
This product has been awarded the RAL quality mark “Pipe Supports” and is subject to continuous external monitoring according to RAL GZ-655.
Technical specifications
| Primary element material | steel |
| Surface finish | HCP |
| Corrosion protection class | C4 |
Load range
|
Type |
-VX,perm. |
VX,perm. |
-VY,perm. |
VY,perm. |
-VZ,perm. |
VZ,perm. |
| PBS 46 M 8 X 50 HCP | 0,54 kN | 0,54 kN | 2,54 kN | 2,54 kN | 4,52 kN | 4,52 kN |
| PBS 46 M 8 X 90 HCP | 0,54 kN | 0,54 kN | 2,54 kN | 2,54 kN | 4,52 kN | 4,52 kN |
| PBS 46 M 8 X 140 HCP | 0,54 kN | 0,54 kN | 2,54 kN | 2,54 kN | 4,52 kN | 4,52 kN |
| PBS 46 M10 X 50 HCP | 0,54 kN | 0,54 kN | 2,54 kN | 2,54 kN | 4,52 kN | 4,52 kN |
| PBS 46 M10 X 90 HCP | 0,54 kN | 0,54 kN | 2,54 kN | 2,54 kN | 4,52 kN | 4,52 kN |
| PBS 46 M10 X 140 HCP | 0,54 kN | 0,54 kN | 2,54 kN | 2,54 kN | 4,52 kN | 4,52 kN |
|
Type |
-MX,perm. |
MX,perm. |
-MY,perm. |
MY,perm. |
| PBS 46 M 8 X 50 HCP | 0,04 kNm | 0,04 kNm | 0,05 kNm | 0,05 kNm |
| PBS 46 M 8 X 90 HCP | 0,04 kNm | 0,04 kNm | 0,05 kNm | 0,05 kNm |
| PBS 46 M 8 X 140 HCP | 0,04 kNm | 0,04 kNm | 0,05 kNm | 0,05 kNm |
| PBS 46 M10 X 50 HCP | 0,04 kNm | 0,04 kNm | 0,05 kNm | 0,05 kNm |
| PBS 46 M10 X 90 HCP | 0,04 kNm | 0,04 kNm | 0,05 kNm | 0,05 kNm |
| PBS 46 M10 X 140 HCP | 0,04 kNm | 0,04 kNm | 0,05 kNm | 0,05 kNm |
Following loads direction not RAL-tested: V(X), V(y), M(x) und M(y)
